CAT/Caterpillar

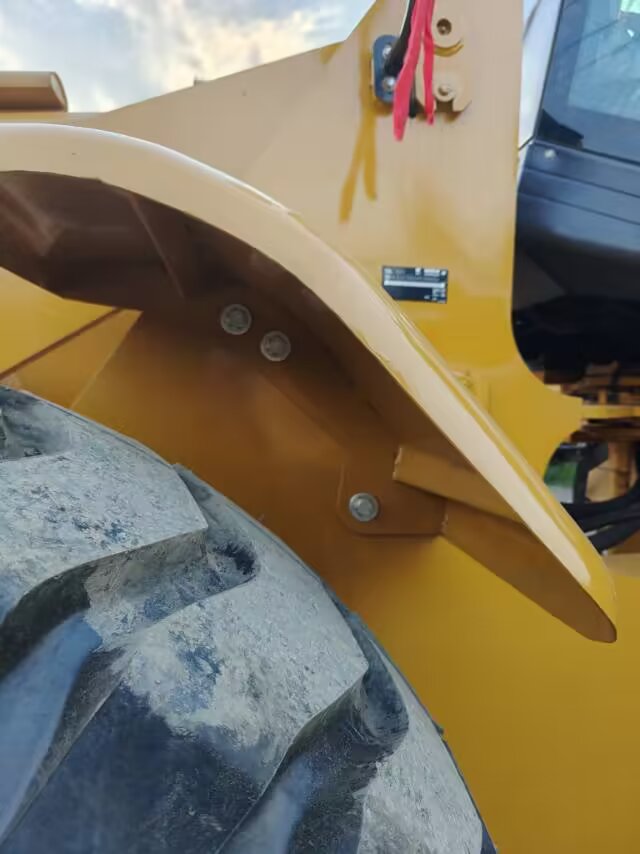

    • Detailed Photos
      Product Parameters

SpecificationDetail
CategorySpecification
General Information

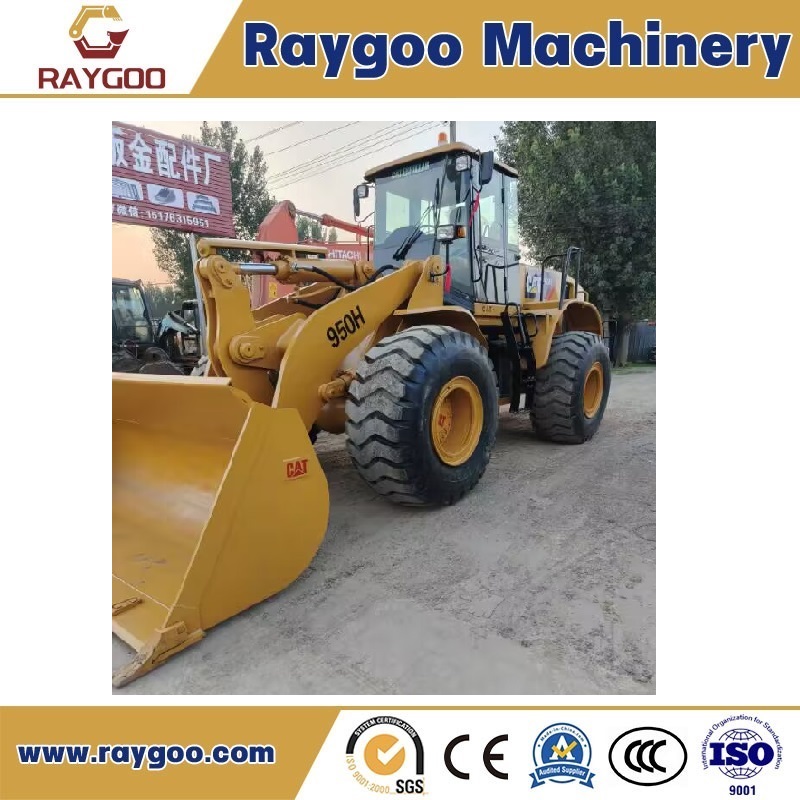

ModelCaterpillar 950H

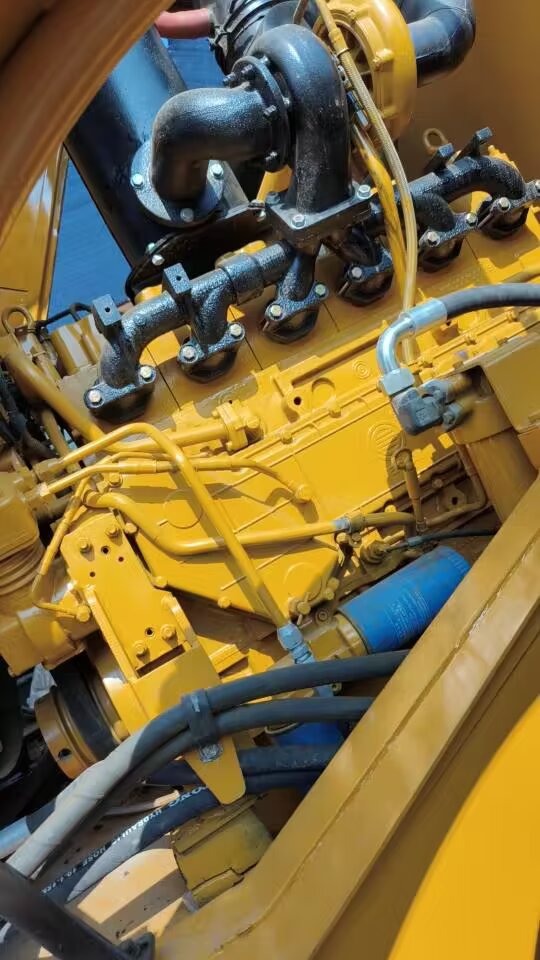

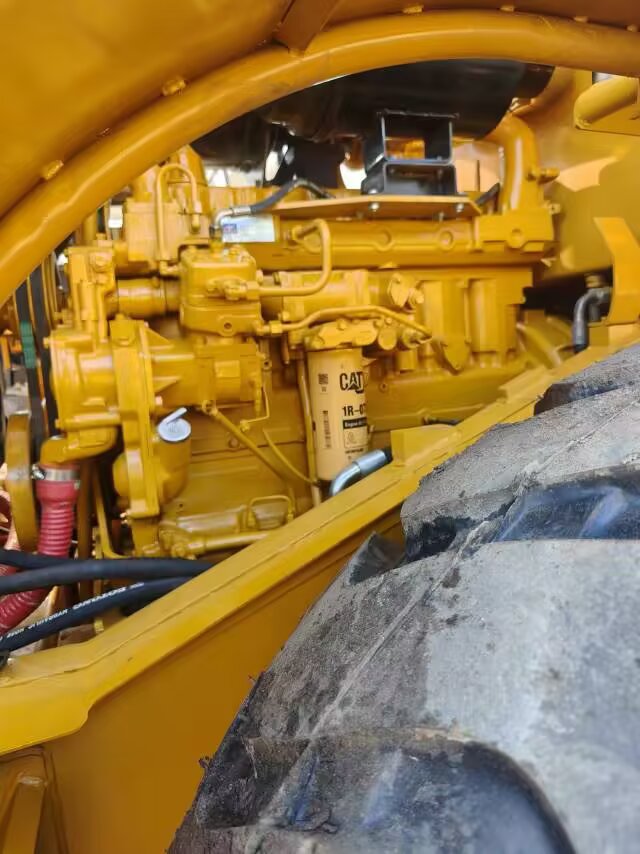

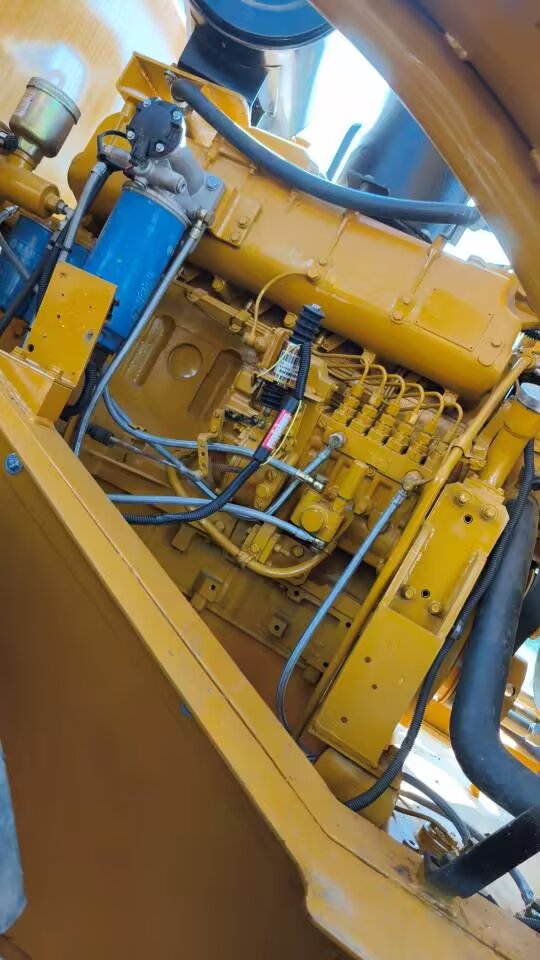

Engine ModelCat® C7 ACERT™
Engine
Net Power (ISO 9249)146 kW (196 hp)
Net Power (80/1269/EEC)147 kW (197 hp)
Maximum Torque (at 1,400 rpm)907 N·m
Bore110 mm
Stroke127 mm
Displacement7.2 L
Maximum Net Power (1,900 rpm) - ISO 9249/SAE J1349147 kW (197 hp)
Weight
Operating Weight18,320 kg
Bucket
Bucket Capacity2.5-3.5 m³ (3.25-4.5 yd³)
Maximum Bucket Capacity3.6 m³
Digging Force150 kN
Static Tipping Load (Full Turn, ISO)10,811 kg
Static Tipping Load (No Tire Deflection)11,540 kg
Transmission
Forward 1st Gear Speed6.9 km/h
Forward 2nd Gear Speed12.7 km/h
Forward 3rd Gear Speed22.3 km/h
Forward 4th Gear Speed37 km/h
Reverse 1st Gear Speed7.6 km/h
Reverse 2nd Gear Speed13.9 km/h
Reverse 3rd Gear Speed24.5 km/h
Reverse 4th Gear Speed40 km/h
Hydraulic System
Bucket/Work Tool System - Pump Output270 L/min
Hydraulic Cycle Time - Lift6.2 seconds
Hydraulic Cycle Time - Dump2 seconds
Hydraulic Cycle Time - Lower2.5 seconds
Hydraulic Cycle Time - Float2.5 seconds
Hydraulic Cycle Time - Rack2.7 seconds
Brakes
Brake SystemMeets required standards
Axles
Front AxleFixed front
Rear AxleOscillating ±13°
Maximum Single Wheel Lift470 mm
Tires
Tire OptionsChoose from a variety of tires to match your application

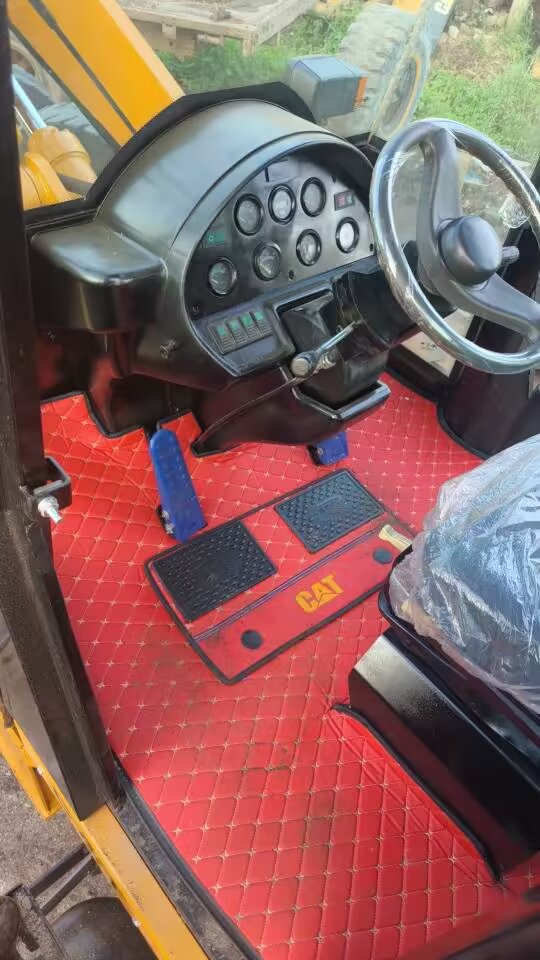

Cab
ROPS/FOPSMeets SAE and ISO standards
Maintenance Capacities
Fuel Tank264 L
Cooling System42 L
Crankcase30 L
Transmission34 L
Front Differential and Final Drive36 L
Rear Differential and Final Drive36 L
Hydraulic Tank110 L
Dimensions
Height to Top of ROPS/FOPS3,461 mm
Ground Clearance (with 23.5R25 tires)397 mm
Center Line of Rear Axle to Edge of Counterweight2,001 mm
Center Line of Rear Axle to Hitch1,675 mm
Lift Arm Clearance (Standard Lift)3,916 mm
Lift Arm Clearance (High Lift)4,414 mm
Height to Top of Exhaust3,278 mm
Height to Top of Hood2,448 mm
B-Pin Height (Standard)3,992 mm
B-Pin Height (High Lift)4,490 mm
Wheelbase3,350 mm
Transport B-Pin Height (Standard)624 mm
Transport B-Pin Height (High Lift)748 mm
Maximum Lift Dump Angle48.2°
Maximum Lift Rackback Angle59.5°
Transport Rackback Angle49.4°
Ground Rackback Angle41°
Height to Axle Centerline748 mm


Our machines advantages



1. Features advantage:
(1) The Z-shaped link mechanism designed espeially for stone operating cnditions features high breakout force and loading capacity and the classic double-rocker structure ensures a broad operating view.
(2) The higher dumping height and dumping distance, extensive rotation angle scope of forks, and adjustable fork spacing are suitable to diversified operation needs, induding the forklifting and overturning of stones.

2. Characteristic:
(1) Power drive flexible suspension damping;
(2) Dual-pump combined technology, flow expanding steering, guide control;
(3) The frame of the high strength adapts to the heavy load condition;
(4) Working mechanism lightens the unloading impact greatly;
(5) Hydraulic wet brake ensures the safe and reliable operation and travelling;
(6) The adjustable instrument panel contributes to the best operation position;
(7) Intelligent electronic monitoring system could monitor the operation condition of the machine accurately.

(8) Convenient maintenance
With integrated oil filling, the service person could access to the maintenance point from the ground, featuring higher efficiency.
The side plates of the shield and rear shield are opened easily, and it is convenient to check the engine and parts, and daily maintenance.


3. Working on various Earth construction projects

5% off Used Second Hand 90% Brand New Cat D3 D4 D5 D6 D7 D8 D9 D10 From B to R Bulldozer in Perfect Working Condition with Amazing Price.

Why choose RAYGOO GROUP

1. Quality assurance
2. Multi-currency payment ( RMB / USD / EUR) & Multi Payment team: T/T, L/C at sight....
3. Cheap shipment costs, Rich container package & Fast shipment:
Raygoo group cooperated with many shipping company many years, which can get the cheapest ocean freight with latest shipping date, even whole shipping tracking.
Chinese Supplier 45ton Kalmar Contchamp Container Forklift Container Reach Stacker for Port Logistic Machine
4. Long-term spare parts support:
Since 2015, in order to effectively solve our customers spare parts demand, we built a spare parts department, which get high speaking feedback from our clients.
Chinese Supplier 45ton Kalmar Contchamp Container Forklift Container Reach Stacker for Port Logistic Machine
5. Long-term technical service support:
We have a professional technical team which provide technical support for our domestic or oversea clients. If clients have some technical problems which can't deal with it by self, we can provide video support or door to door support.
6. Door and door service:
Till now, we can support door and door assembling service if they can't assemble it when container arrived in some countries,such as Philippines, Zimbabwe, Mozambique, Kenya, Cambodia, Indonesia.... If the quantity is large, even can provide engineer indoor support.
Chinese Supplier 45ton Kalmar Contchamp Container Forklift Container Reach Stacker for Port Logistic Machine

Chinese Supplier 45ton Kalmar Contchamp Container Forklift Container Reach Stacker for Port Logistic Machine
7. Rich brands:
As we worked on construction machines more than 15 years, which already build nice strategic relationship with world brand company for competitive price and quality support.
Chinese Supplier 45ton Kalmar Contchamp Container Forklift Container Reach Stacker for Port Logistic Machine

   FAQ


Q: What is your delivery time?
A: For standard machine, the delivery time is Within 25-35 days after receiving the down payment.It also depends on the models and the quantity of your order.
In peak season,the production may take longer.

Q: What is the payment term?
A: Normally we accept L/C, or T/T 30% down payment, balance to be paid against BL copy and loading pictures.

Q: What color can I choose?
A: There are Yellow, Red, Blue, Black, White, Orange,and Green. We can customize the color when you order more.

Q: What kind of service can I get from you? How can I get spare parts?
A: We have 1 year warranty for each brand new machine, within 1 year, if any parts broken because of quality issues, the new parts would be sent to you free of charge by DHL, within 7 working days. Besides of the warranty policy, our professional after-sales team responds quickly to any kind of using problems, replacement parts supply could be guaranteed for a life time.
